QIE Group provides customized soybean oil production lines for commercial oil processing projects, covering soybean pretreatment, oil extraction, crude oil handling, and refining according to project requirements. Each line is configured based on raw material quality, required processing capacity, target oil specifications, and available utilities.
From individual processing sections to integrated plant projects, we support process selection and equipment configuration for different production scales and operating requirements.
A soybean oil production line generally includes the following sections. The final configuration depends on the selected extraction method, product requirements, and project scope.

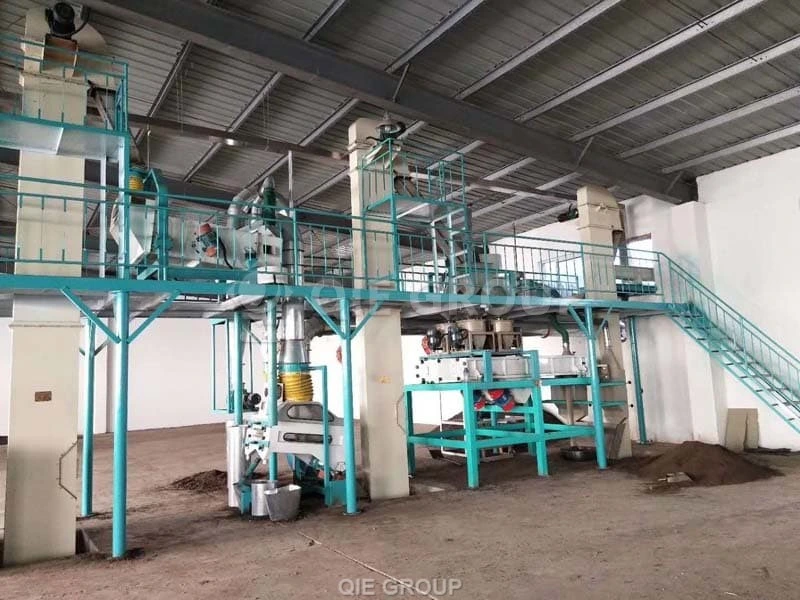

Soybeans are cleaned to remove foreign materials, then conditioned, crushed, and dehulled when required. Depending on the requirements, the beans may be dehulled and subsequently either flaked or expanded to prepare them for the downstream oil extraction process. The specific parameters for pretreatment are determined by the characteristics of the raw material and the extraction process to be employed.
The extraction method is selected according to processing capacity, investment objectives, oil recovery requirements, and the intended use of soybean meal.
Mechanical pressing and solvent extraction are different process routes, not mandatory stages in every plant. The appropriate configuration should be determined by the overall project requirements.
After extraction, crude soybean oil is collected and transferred for further treatment. Depending on the selected process and crude oil quality, suitable filtration, separation, storage, and transfer equipment may be included.
The required equipment and treatment sequence should be determined by the characteristics of the crude oil and the specifications of the downstream refining section.

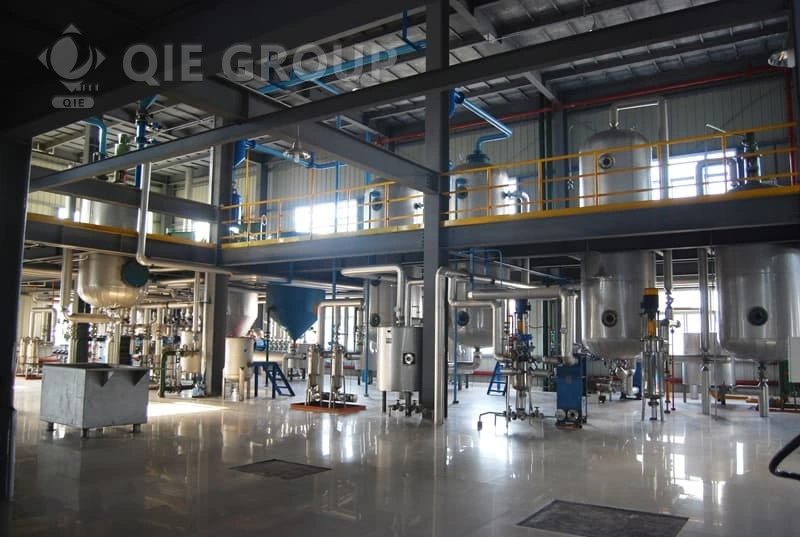

When the project requires refined soybean oil, a refining section can be integrated into the production line. Depending on crude oil quality and the selected refining route, the process may include degumming, neutralization or other deacidification methods, bleaching, and deodorization.
The refining process and equipment configuration are determined during project engineering rather than fixed identically for every plant. Learn more about our soybean oil refining equipment.
The main equipment depends on the selected process route and the agreed supply scope.
| Processing section | Main equipment or systems |
|---|---|
| Soybean pretreatment | Cleaning, conditioning, crushing, flaking or extrusion equipment |
| Mechanical pressing | Screw oil presses and supporting oil-handling equipment |

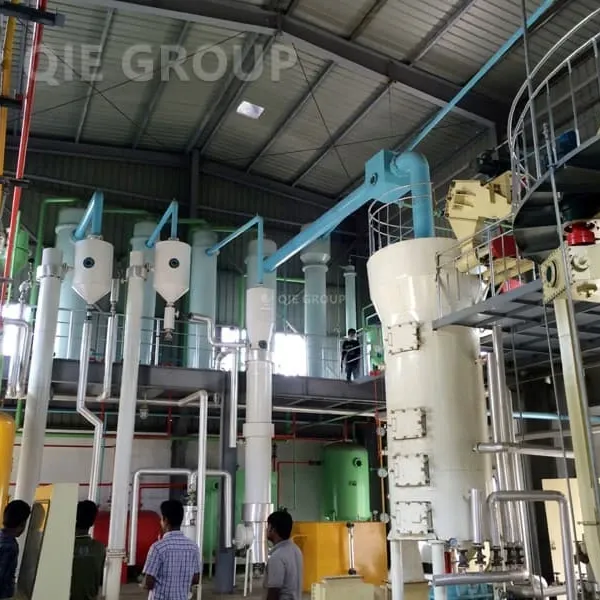

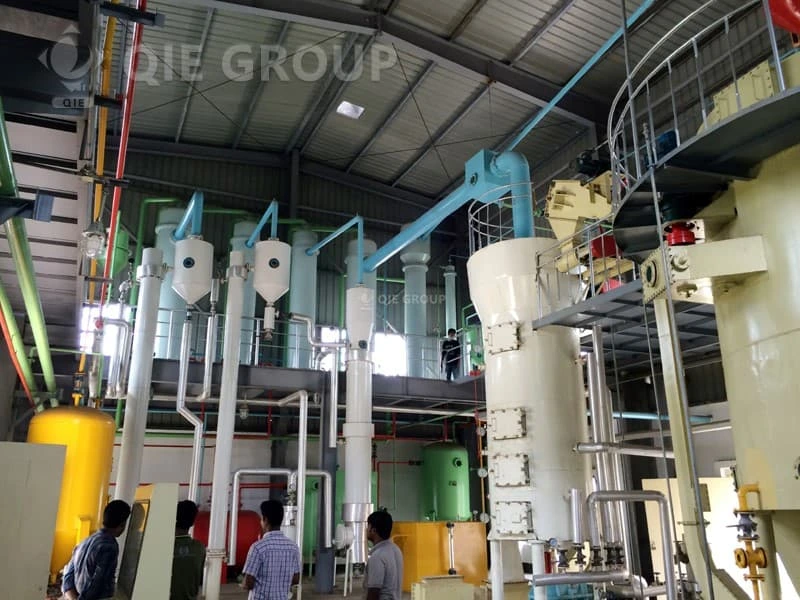

| Solvent extraction | Extractor, evaporation and stripping systems, solvent recovery, and meal desolventizing equipment |
| Crude oil handling | Suitable filtration, separation, storage, and transfer systems |
| Refining | Degumming, deacidification, bleaching, and deodorization equipment |
| Plant utilities and controls | Conveying, storage, instrumentation, automation, and supporting systems as required |
Not every project requires all the equipment listed above. Final selection depends on the processing route, required throughput, site conditions, and agreed supply scope.
Before selecting equipment, consider the following factors:
For projects evaluating extraction performance, our article on soybean oil extraction efficiency provides additional information related to oil extraction efficiency.
For investment planning, see 300 TPD soybean oil turnkey plant cost for a project-scale cost discussion. Actual investment depends on process configuration, equipment scope, location, utilities, and other project-specific factors.
QIE's soybean processing references include projects with different capacities and process scopes. Reviewing relevant projects can help clarify equipment arrangements and the differences between individual processing sections and integrated production lines.
Where project references match your intended capacity and process route, they can help you evaluate the proposed equipment configuration and supply scope.
To evaluate a suitable soybean oil production line, please share the following information:
Based on these details, we can discuss a suitable process configuration, the main equipment sections, and the project scope.
The main requirements include soybean processing capacity, raw material quality, preferred extraction method, target oil products, refining requirements, available utilities, and project location.
It can. Refining equipment may be included when the project requires refined soybean oil. The final configuration depends on whether the plant produces crude soybean oil only or includes further refining.
The decision depends on processing scale, raw material characteristics, required oil recovery, investment budget, operating costs, and soybean meal requirements. The suitable route should be evaluated as part of the overall plant design.
The supply scope can be discussed according to project requirements, including relevant processing sections and supporting systems. Pretreatment, extraction, refining, utilities, installation, and commissioning should be clearly defined in the project proposal.
QIE Group provides customized soybean oil production lines integrating soybean pretreatment, mechanical pressing or solvent extraction, and oil refining according to project requirements. We support equipment selection and process configuration based on processing capacity, raw material quality, and final product specifications, helping clients plan efficient, integrated soybean oil processing plants.
