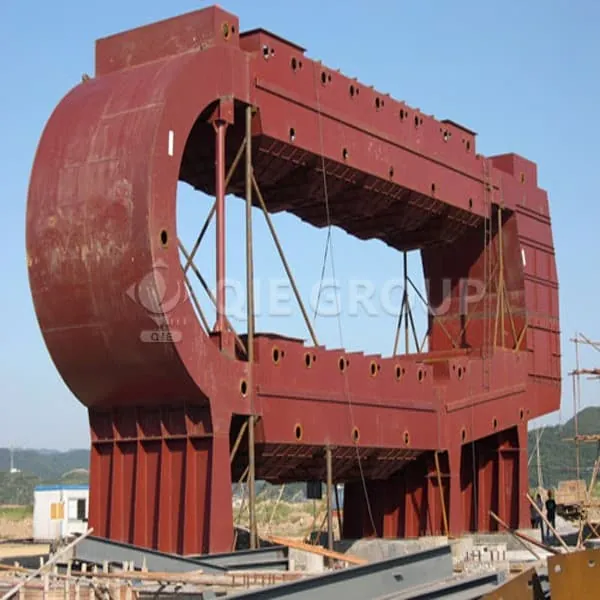

Name: Loop type extractor
Rating: 5.0 (50 reviews)

Product Details

Loop type extractor is a continuous combined extractor suitable for large oil mills. The material is dragged by the drag chain conveyor and the leaching process can be completed in one rotation. The structural design of the ring extractor is aimed at reducing power consumption, maintenance costs and noise. The extractor adopts percolation filtration and rotates at a mechanical bend to improve efficiency. The special gravity solvent spraying device ensures a good leaching effect. The special unloading system and adjustable speed ensure that the meal is evenly discharged onto the conveyor and buffer the impact on the conveyor. All these designs make it stable during the desolventizing process.

Loop type extractor is suitable for extracting oils such as soybean, cottonseed, peanut, rapeseed, sunflower seed, rice bran, corn germ, tea seed, flax seed, etc.

Advantages of loop type extractor

1. The material layer is turned over twice during the entire leaching process, which is conducive to more uniform and thorough leaching of the solvent and mixed oil.

2. The material layer is shallow, which is conducive to the rapid penetration and discharge of solvents and mixed oils. Therefore, the leaching time is short, the wet meal contains less solvent and low residual oil.

3. The loop type extractor adopts chain drive, low speed, stable operation, no noise and low maintenance cost.

4. The extractor can be transported in sections and installed on site, which is convenient for professional manufacturers to produce large equipment.

5. The extractor is fed and dripped evenly and continuously, which is beneficial to the pressure stability of the whole system.

6. The use of advanced mixed oil circulation design is beneficial to reduce the input of fresh solvent, reduce residual oil in meal, increase the concentration of mixed oil, reduce evaporation and save energy.

We have extensive experience in the design, manufacture and installation of edible oil solvent extraction plant to ensure an efficient, effective and reliable extraction process. QIE GROUP welcomes you! Looking forward to your inquiries!

Product Introduction

The loop type extractor is a widely used equipment in the oil extraction industry. It is mainly used to efficiently extract oil from oils (such as soybeans, rapeseed, cottonseed, peanuts, etc.). Its core principle is to use organic solvents (such as n-hexane, etc.) to fully contact with oils and fats to dissolve the oils and fats, and then separate the solvent from the oils and fats through subsequent evaporation, stripping and other processes to obtain crude oil. The ring tube extractor has become one of the preferred equipment for large oil processing companies due to its advantages of continuous production, efficient extraction, and stable operation.
