Sesame oil press

Sesame oil press is a highly efficient equipment designed for sesame oil extraction. It uses advanced cold pressing technology to fully retain the nutrients of sesame in a low temperature environment, ensuring the purity and fragrance of sesame oil. This equipment is suitable for family workshops, small processing plants, food companies, etc. It is an ideal choice for producing high-quality sesame oil.

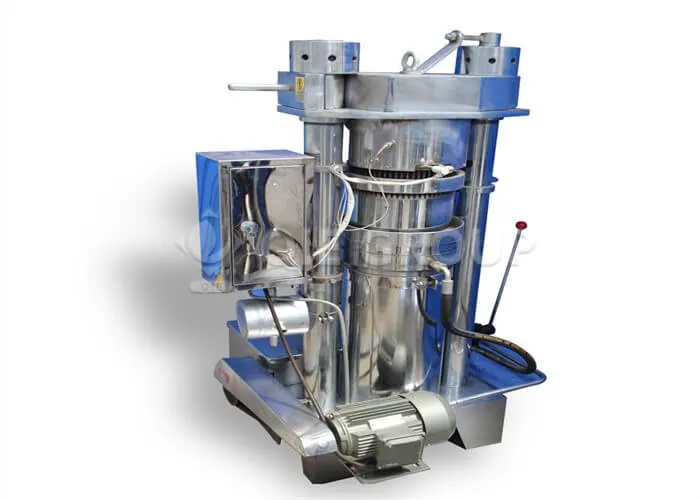

The hydraulic sesame oil press is mainly composed of three parts:

1. Subject:

It is one of the main parts of the whole machine, which consists of bottom plate, column, upper plate, press box assembly, oil receiving pan, nut and other parts. The oil in the press box assembly is pushed upward by the force of the cylinder assembly, and the oil flows down from the oil flow gap of the hydraulic oil press and reaches the oil storage barrel through the oil receiving pan.

2. Transmission hydraulic part:

This is the main working power source of the hydraulic sesame oil press with high oil output rate. It is composed of transmission shaft, worm gear, worm, gear pump, high-pressure pump, relief valve, manual valve, cylinder assembly, pipe joints and other parts. It adopts the world's advanced hydraulic pump station-three-plunger pump station, which has lower speed, higher oil pressure and high temperature resistance than domestic double-plunger pumps. It can work continuously without cooling device when the oil temperature is above 65 degrees.

3. Electrical control part:

The electrical control part of the hydraulic sesame oil press is composed of electric motor, voltmeter, temperature controller, pressure gauge, power fuse and other components.

Working principle of hydraulic oil press

The hydraulic oil press adopts the principle of liquid hydrostatic transmission, using liquid as a medium to transmit pressure, thereby squeezing out the oil and separating the oil from the oil. During the entire squeezing process, the equipment does not generate additional heat, so it will not destroy the organic components in the oil. The squeezed oil is of high quality and low impurity content. It is a common equipment for oil mills to produce sesame oil. The outstanding advantage of the hydraulic oil press is that the pressure it provides is static pressure, and the mechanical friction of the oil during the squeezing process is extremely small, making the squeezed oil clear and transparent, and the nutrients are well retained. After a simple filtration, it can be directly eaten.

Advantages of hydraulic sesame oil press:

1. Low-temperature cold pressing retains more complete nutrition. It adopts spiral pressing technology and the working temperature is controlled below 45°C to avoid high temperature destruction of effective ingredients such as vitamin E and sesamin in sesame.

2. High oil yield, the oil content of sesame can reach 45%-50%, and the residual oil rate is less than 6%, which is economical and efficient.

3. Simple operation, high degree of automation, and reduced manual intervention.

4. Energy saving and environmental protection, stable operation, low energy consumption design, saving more than 30% energy than traditional oil presses.

If you need a sesame oil press or want to start a sesame oil processing plant to produce high-quality sesame oil, no matter how big or small, you are welcome to come to the QIE factory to test the machine, visit and inspect, and obtain related equipment.
