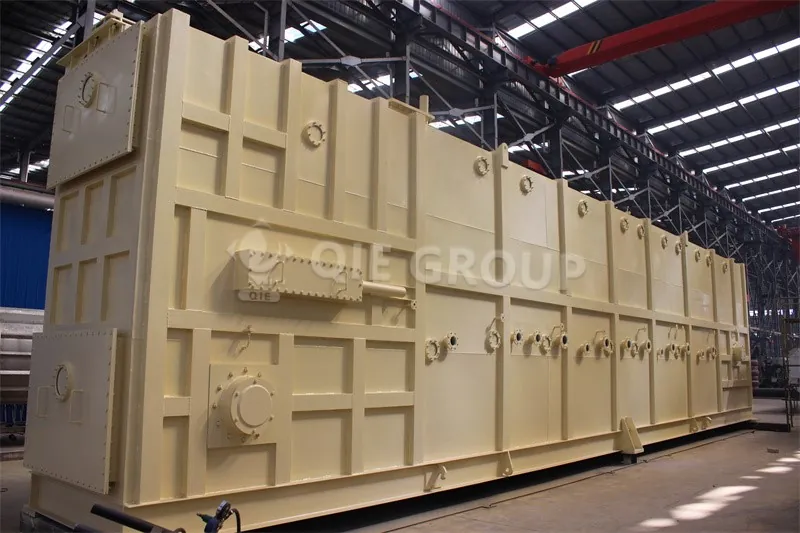

Name: Drag chain extractor
Rating: 5.0 (50 reviews)

Product Details

The drag chain extractor is used to extract various oils. Its structural feature is that the ring structure separated by the upper and lower layers is merged into a unified box structure. Under the action of the turning mechanism, the material can be completely turned over, so the permeability is very good.

The drag chain extractor is suitable for the extraction of various raw materials, such as the primary pressing of soybean germ, rice bran, etc. It is also suitable for the extraction of pre-pressed cakes of vegetable oils such as cottonseed, rapeseed, sesame, tea seed, tung seed, etc.

Features of drag chain extractor

1. It is suitable for materials with good air permeability and good cake forming properties, but not suitable for materials with high powder content.

2. The on-site assembly time is short. If the whole machine is delivered, only the internal transmission chain and scraper need to be installed on site, which shortens the assembly time and reduces the installation cost.

3. The material layer is lower and the leaching time is shorter than horizontal rotation, generally 70-90 minutes;

4. Advanced technology, simple structure, easy operation, low power consumption, stable and reliable operation, and low filtration loss rate.

5. Each feed grid is equipped with a soaking area for better soaking effect.

Product Introduction

The drag chain extractor is a widely used equipment in the field of oil extraction. It uses a unique drag chain structure to achieve continuous and stable transportation of oil during the extraction process, and combines the full contact between solvent and oil to efficiently extract oil. It is suitable for the extraction of various oils such as soybeans, rapeseed, cottonseed, etc., and plays an important role in large oil processing plants, comprehensive grain and oil enterprises and other scenarios.
