Did you know that from the exact moment a single soybean enters the processing plant, its oil yield, energy consumption, and even solvent extraction efficiency have already been fundamentally determined by the "preprocessing section"? This is precisely why the soybean preprocessing workshop engineered by QIE Group stands as the critical core of modern oil extraction plants.
Soybean processing is far more complex than simply feeding raw materials directly into an oil press or a solvent extractor. As the definitive opening stage of modern oil production, the preprocessing phase acts as an efficiency multiplier for the entire operation. If the preprocessing is executed perfectly, the oil plant is already halfway to economic and operational success.
During harvesting, storage, and transportation, raw soybeans inevitably become mixed with various impurities, such as sand, stones, stalks, and iron fragments. Upon entering the production line, the soybeans sequentially pass through automated systems to complete metering, cleaning/screening, de-stoning, and iron removal.
The core value of this initial stage lies in protecting downstream heavy equipment:
Equipment Protection: Thoroughly eliminating hard and magnetic impurities prevents catastrophic wear and tear on high-speed crushers and flaking rolls.
Operational Continuity: Minimizing unexpected equipment failures directly increases the continuous operation rate and safety margins of the entire soybean oil production line.
Cleaned soybeans cannot be routed directly to mechanical crushing. At room temperature, raw soybeans possess high hardness and low elasticity; direct processing would generate an excessive amount of fine powder (fines), which blocks subsequent filtration systems. Therefore, the material must enter a conditioning tower.
By precisely controlling steam and hot air parameters, the soybean moisture content is adjusted to approximately 10%, and the material temperature is raised to 60–70°C. This advanced softening process alters the physical properties of the bean, optimizing its plasticity and creating the ideal thermodynamic conditions for subsequent crushing, dehulling, and flaking.

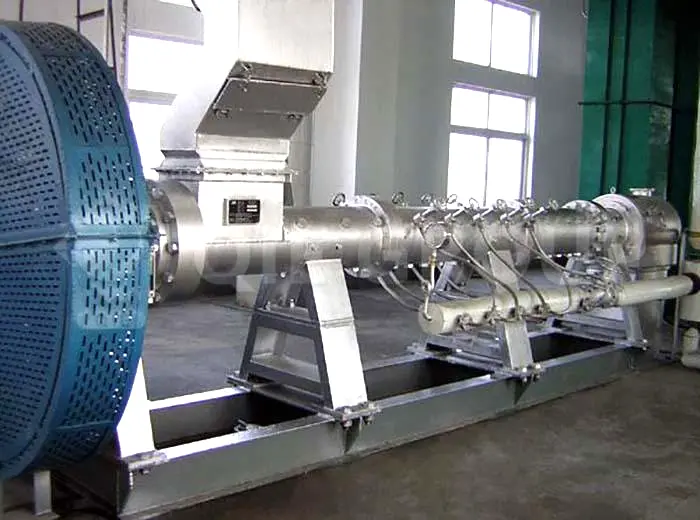

This phase is the ultimate determinant of final oil yields and solvent consumption metrics. A state-of-the-art preprocessing workshop utilizes a highly sophisticated combination of "double crushing + double dehulling + flaking + extrusion-puffing" technologies:

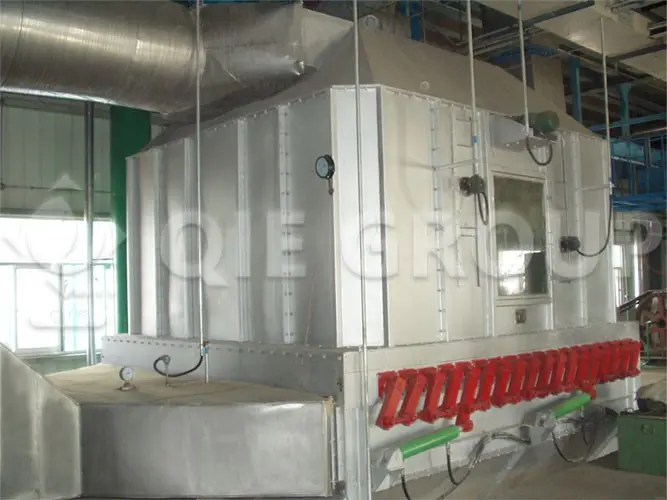

Extruded materials exit the machinery at high temperatures and high moisture levels, making them entirely unsuited for immediate introduction into the solvent extraction workshop. The preprocessing line integrates a counter-flow deck dryer/cooler to treat the material evenly.
The technical priority here is preventing the collets from cracking or collapsing due to thermal shock or sudden condensation. By controlling the temperature and moisture reduction gradients, the mechanical strength of the expanded collets is securely preserved. This ensures the material withstands conveyor transport without degrading into fines, while maintaining a structural state optimized for solvent percolation inside the extractor.
Advanced processing mechanics require a modern nerve center. Modern soybean preprocessing workshops are fully equipped with localized computer-centralized control systems (PLC) and comprehensive full-line safety interlocking mechanisms.
• Real-Time Visualization: Critical operational parameters—such as temperature, moisture, and pressure gradients—are monitored and visualized continuously, eliminating human errors born of subjective operational guesswork.
• Integrated Dust Collection: High-efficiency aspiration and dust filtration systems operate across the entire line, maintaining clean workshop air quality while completely mitigating the risk of industrial dust explosions, fulfilling modern green factory standards.
Preprocessing is not an administrative "preparatory step"; it is the ultimate efficiency engine of a modern soybean oil processing facility. Its execution dictates daily processing capacity, per-ton energy overheads, and the ultimate profit margins of the enterprise.
If you are planning to build a new oil plant or upgrade an existing processing line, welcome to contact QIE Group. We deliver custom-engineered, energy-saving soybean oil processing solutions tailored to help your enterprise maximize yields and lower operating costs in a competitive global market.
