QIE GROUP supplies sunflower oil refining equipment in batch, semi-continuous, and continuous configurations. Explore degumming, deacidification, bleaching, dewaxing, and deodorization equipment for different plant capacities.

Product Details

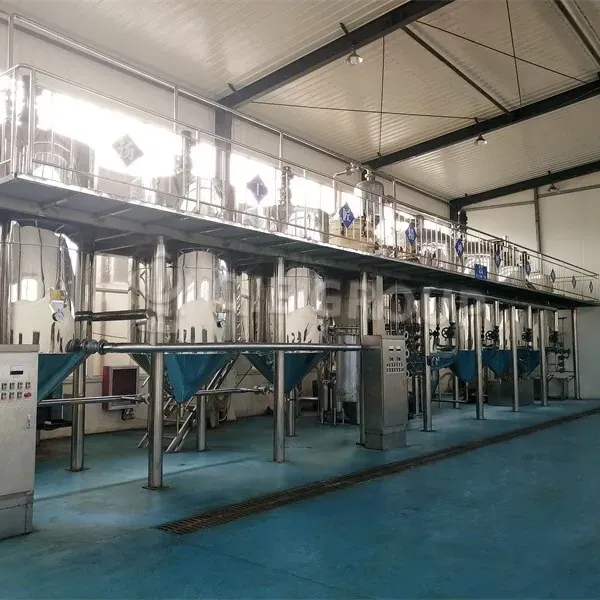

Sunflower oil refining equipment for processing crude sunflower oil into refined edible oil. The refining system can be configured with degumming, deacidification, bleaching, deodorization, and optional dewaxing sections according to crude oil quality, processing capacity, and finished-oil specifications.

Equipment configuration depends on crude oil quality, processing capacity, refining method, and finished oil requirements. QIE GROUP provides equipment configurations for different production scales and project conditions.

Sunflower Oil Refining Equipment Configurations

QIE GROUP provides three main refining configurations:

Refining Type Reference Capacity Typical Application
Batch Refining 1–20 TPD Small-scale oil processing
Semi-Continuous Refining 20–50 TPD Medium-scale refining plants
Fully Continuous Refining Above 50 TPD Large-scale industrial refining

Note: The capacity ranges above are reference configurations. The appropriate system depends on crude oil quality, daily processing requirements, refining route, and finished-oil specifications.

Main Sunflower Oil Refining Equipment and Functions

A sunflower oil refining plant consists of several processing units. Each unit performs a specific function in removing impurities and improving the quality of crude sunflower oil.

Equipment Main Function
Degumming Tank Provides conditions for water hydration and separation of phospholipids and other gum impurities
Disc-Stack Centrifuge Separates hydrated gums, soapstock, and other liquid-phase impurities
Neutralization Tank Supports alkali neutralization when chemical deacidification is selected
Bleaching Tower Mixes crude oil with activated bleaching earth under controlled vacuum conditions
Leaf Filter / Plate-and-Frame Filter Separates spent bleaching earth and suspended impurities from oil
Deodorization Tower Removes volatile odor compounds through high-temperature steam stripping under vacuum
Heat Exchanger Transfers heat between process oil streams to improve thermal efficiency
Crystallization and Maturation Tanks Provide controlled cooling and crystal growth during dewaxing
Dewaxing Filter Separates crystallized wax from oil

Sunflower Oil Refining Process and Equipment Selection

The main refining stages and their corresponding equipment are outlined below.

Process Purpose Typical Equipment
Degumming Removes phospholipids, mucilage, and other gum-forming impurities Degumming tank, disc-stack centrifuge
Deacidification Reduces free fatty acids and acid value Neutralization tank, centrifuge, or physical refining system
Bleaching Removes pigments such as chlorophyll and carotenoids Bleaching tower, vacuum filter
Dewaxing (Optional) Improves low-temperature clarity by removing crystallized wax Crystallization tank, maturation tank, dewaxing filter
Deodorization Removes undesirable volatile odors and some remaining free fatty acids Deodorization tower, vacuum system, heat exchangers

Refining Considerations for Sunflower Oil

Sunflower oil refining requires attention to raw material characteristics, especially phospholipid content, acidity, pigments, and wax content. These factors influence the refining method and equipment configuration.

1. Degumming

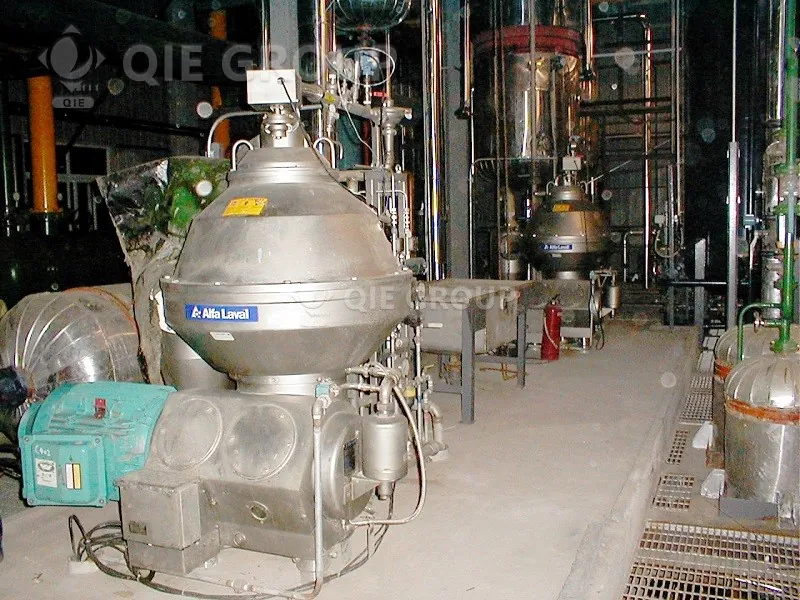

Water degumming is commonly used to hydrate and separate phospholipids and other gum impurities from crude sunflower oil. A disc-stack centrifuge is typically used for oil-gum separation. Effective degumming helps reduce phosphorus content and prevent gum deposits during subsequent processing.

2. Deacidification Method

The refining method depends on crude oil quality. Good-quality crude oil with relatively low acidity, including suitable oil from dehulled-seed processing, may be considered for physical refining. Alkali neutralization may be selected when crude oil acidity or other quality conditions make it more suitable.

3. Bleaching Requirements

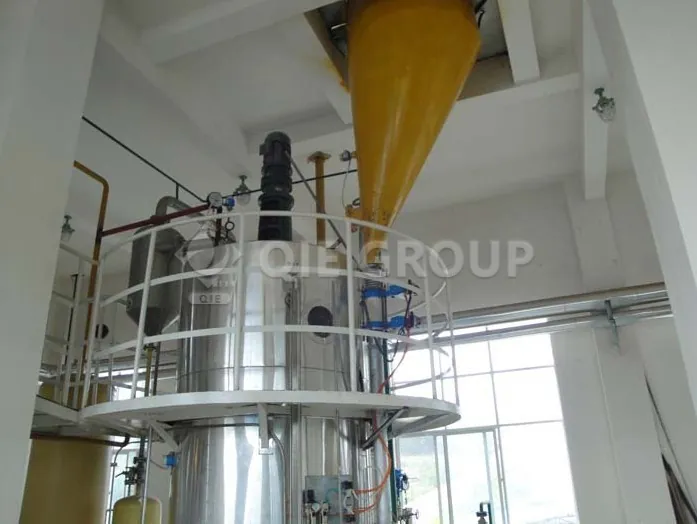

Whole-seed crude sunflower oil may contain more pigments than oil from dehulled seeds, requiring a higher bleaching earth dosage or longer treatment. Actual requirements depend on crude oil color and quality.

4. Optional Dewaxing

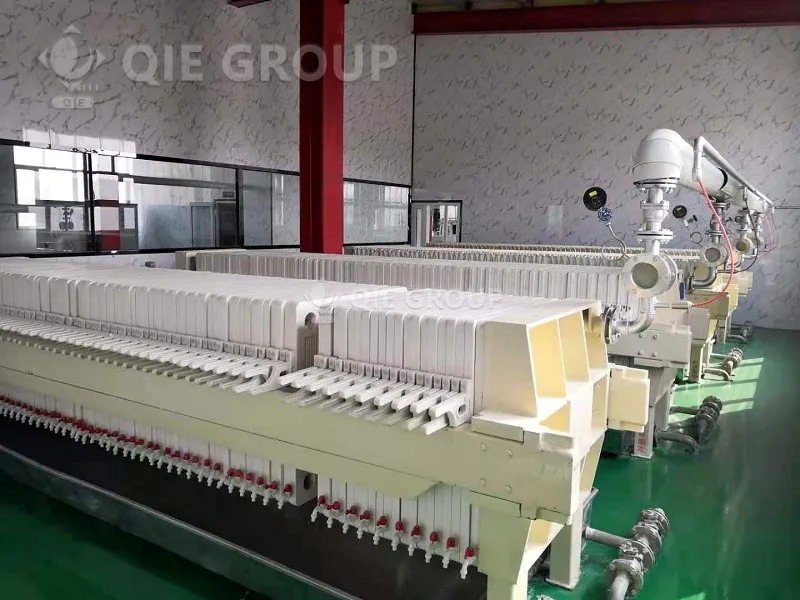

Dewaxing is optional and depends on the crude oil's wax content and the required low-temperature clarity of the finished oil. The process typically involves controlled cooling, crystallization, maturation, and filtration.

5. Deodorization

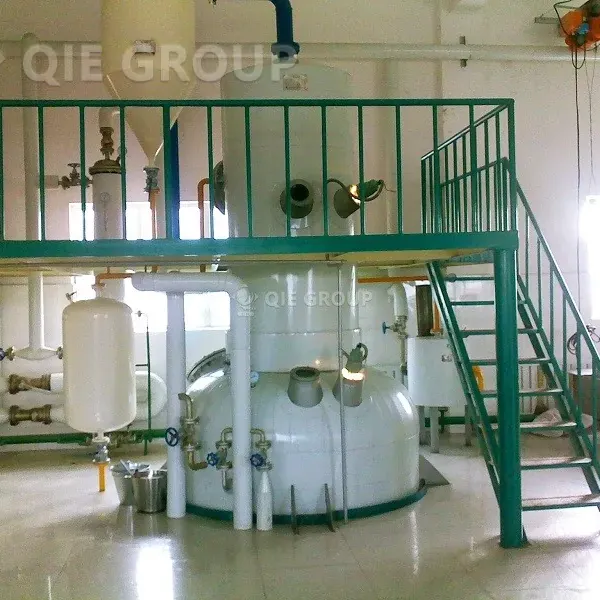

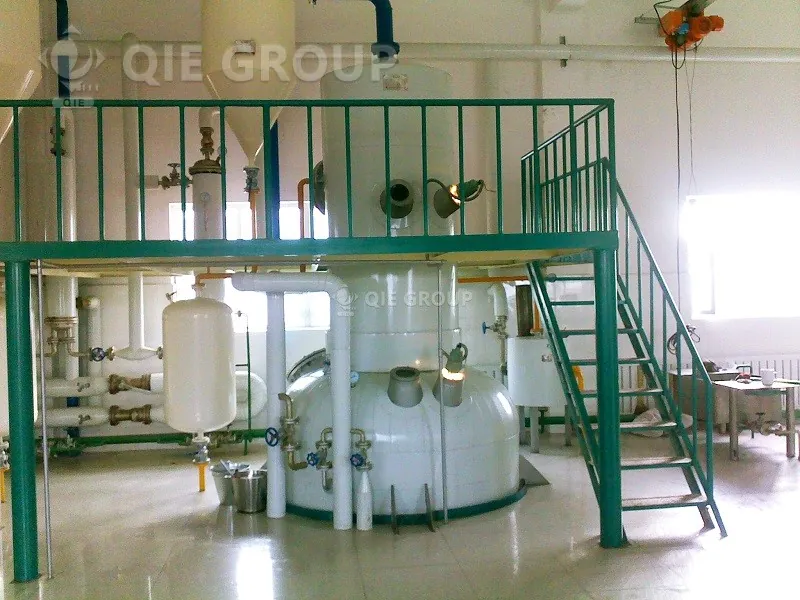

Vacuum steam stripping removes undesirable volatile compounds, including grassy notes naturally present in sunflower oil and excessive odors generated during processing. The deodorization conditions are selected to achieve the required finished-oil flavor and quality.

Refined Sunflower Oil Quality Requirements

The refining system is designed around the required finished-oil specifications. Typical quality considerations include:

  • Acid value: A reference target may be ≤0.3 mg KOH/g, subject to applicable standards and customer specifications.
  • Color and odor: Bleaching and deodorization are adjusted to obtain the required finished-oil appearance and flavor.
  • Oil and material losses: Process separation, filtration, and operating conditions are designed to minimize unnecessary oil losses.
  • Energy consumption: Heat recovery between process streams can help reduce energy demand. A 10–15% energy-saving improvement may be used as a project reference, depending on the system configuration and comparison basis.

Final performance targets should be confirmed according to crude oil analysis, refining design, and applicable food standards.

150 TPD Sunflower Oil Refinery Project

QIE GROUP supplied refining equipment for a 150 TPD sunflower oil refinery project in Asia. The equipment configuration included an alkali refining pot, bleaching pot, deodorizing tower, centrifuge, leaf filter, and crystallization system.

View the 150 TPD sunflower oil refinery project

How to Choose Sunflower Oil Refining Equipment

Before selecting a refining system, several factors should be evaluated:

  • Crude oil quality: Acid value, phosphorus content, color, wax content, and other impurities.
  • Processing capacity: Required daily throughput and operating schedule.
  • Refining method: Chemical neutralization or physical refining, depending on crude oil characteristics.
  • Dewaxing requirements: Whether the finished oil needs to maintain clarity under low-temperature storage.
  • Finished-oil specifications: Acid value, color, odor, and applicable market standards.
  • Investment and operating costs: Equipment configuration, energy consumption, filtration materials, and heat recovery.

For projects requiring a complete processing system from seed preparation to refined oil, explore our sunflower oil production line.

FAQ

Does sunflower oil always require dewaxing?

Not every project requires the same dewaxing configuration. The need depends on crude oil wax content and finished-oil clarity requirements, especially during low-temperature storage.

What is the difference between batch and continuous sunflower oil refining?

Batch refining processes oil in separate batches and is commonly considered for smaller capacities. Semi-continuous and fully continuous systems are designed for progressively larger processing requirements and more continuous operation.

Can sunflower oil be physically refined?

Yes. Physical refining may be considered for suitable crude oil with appropriate quality characteristics. The final choice depends on acidity, phosphorus content, pretreatment effectiveness, and the required finished-oil specifications.

What information is needed to select sunflower oil refining equipment?

The main information includes daily processing capacity, crude sunflower oil quality, acid value, wax content, finished-oil specifications, and the preferred refining configuration.

Request a Sunflower Oil Refining Equipment Proposal

Contact QIE GROUP with your crude oil analysis, target processing capacity, and finished-oil requirements. Our team can evaluate a suitable refining route and equipment configuration for your sunflower oil refinery.

Contact Us for Details on Sunflower Seed Oil Refining Equipment.

Product Introduction

Sunflower oil refining equipment for processing crude sunflower oil into refined edible oil. The system can include degumming, deacidification, bleaching, deodorization, and optional dewaxing units. Equipment configurations are customized according to raw oil quality, processing capacity, and finished oil requirements.
